ASS-T+QDS

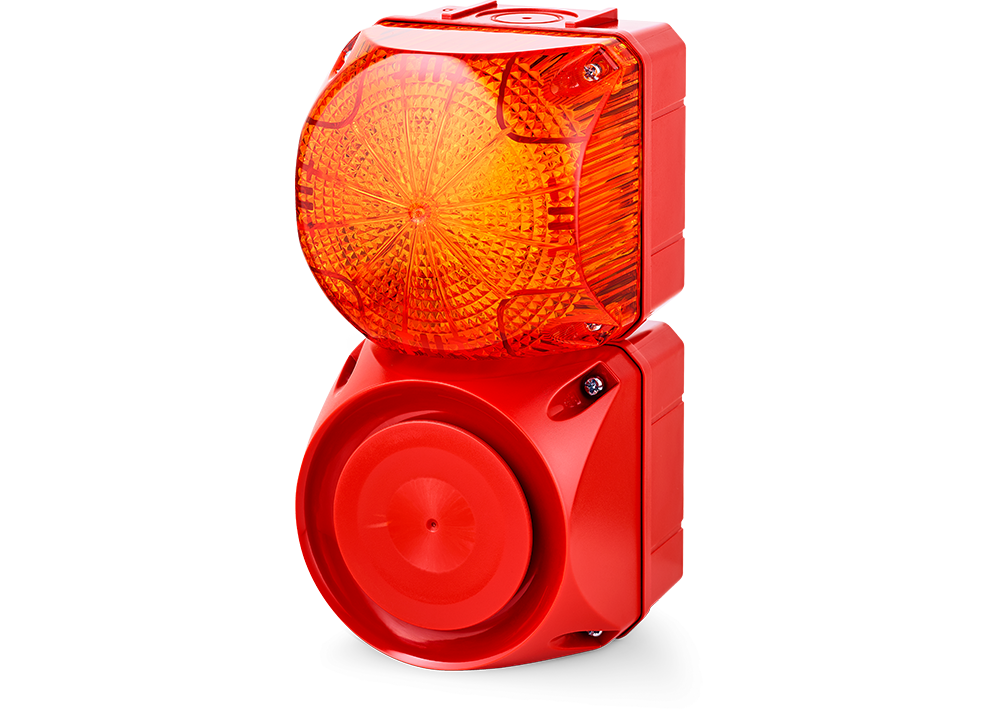

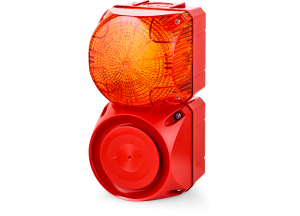

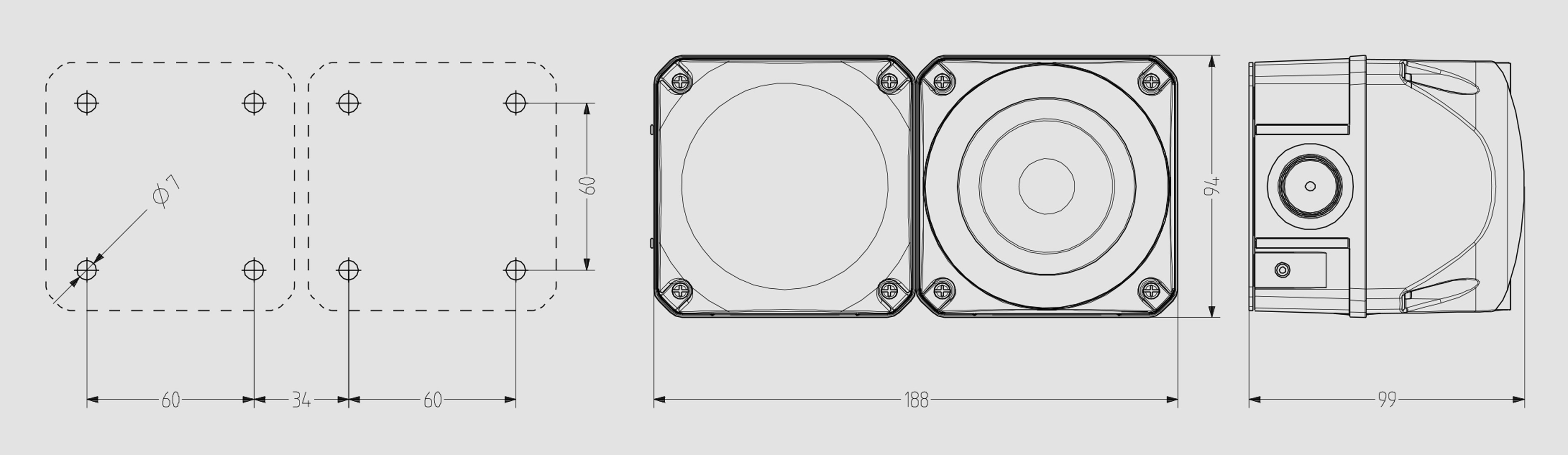

ASS-T+QDS Multi-tone alarm sounder and LED steady/flashing beacon

Combination of 94 mm cubic-design multi-tone alarm sounder and LED steady/flashing beacon
Beacon with good frontal/lateral signalling effect
High degree of protection IP 66
UV-stabilised material

Technical data – visual equipment

Housing	94 mm (square), Polycarbonate, UV stabilized
Lens	Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow
Type of mounting	horizontal, vertical or any
Cable entry	Back: Grommet 5–10 mm, optional side cable entry with cable gland (on both sides) (accessory type AKV)
Connection technology	Screw/plug-in terminal 2,5 mm²
Leakage current	0,003 A
Beacon type	LED steady beacon or LED flashing beacon
Light source	16 LEDs
Luminous intensity	30 Cd
Strobe/flash frequency	2 Hz
Duty cycle	100 %
Service life	Light source: >50.000 h
Operating temperature	-30 °C / +60 °C
Degree of protection	IP66 & UL Type 4/4x/13
Impact resistance	IK09
Weight	230 g

Housing	Polycarbonate, UV stabilized
Type of mounting	horizontal, vertical or any, Sound outlet opening at bottom or horizontal
Cable entry	Back: Grommet 5–10 mm Side: AKV cable gland M20 x 1.5 7–14 mm can be mounted
Connection technology	Screw/plug-in terminal up to 2,5 mm²
Leakage current	0,003 A
Tone	32 Tones, 3 Tones can be switched externally, see tone table
Volume	108 dB (can be adjusted with potentiometer)
Tone frequency	150-2.900 Hz
Duty cycle	100 %
Operating temperature	-30 °C / +60 °C
Degree of protection	IP66 & UL Type 4/4x/13
Impact resistance	IK09
Weight	300 g

Type	Lens colour	Nominal voltage	Voltage range (V)	Nominal current (A)	Part no.
QDS	amber	24 V AC/DC	+/- 10 %	0,100	874161405
QDS	amber	48 V AC/DC	+/- 10 %	0,075	874161408
QDS	amber	110-120 V AC	+/- 10 %	0,085	874161310
QDS	amber	230-240 V AC	+/- 10 %	0,075	874161313
QDS	blue	24 V AC/DC	+/- 10 %	0,100	874165405
QDS	blue	48 V AC/DC	+/- 10 %	0,075	874165408
QDS	blue	110-120 V AC	+/- 10 %	0,085	874165310
QDS	blue	230-240 V AC	+/- 10 %	0,075	874165313
QDS	clear	24 V AC/DC	+/- 10 %	0,100	874164405
QDS	clear	48 V AC/DC	+/- 10 %	0,075	874164408
QDS	clear	110-120 V AC	+/- 10 %	0,085	874164310
QDS	clear	230-240 V AC	+/- 10 %	0,075	874164313
QDS	green	24 V AC/DC	+/- 10 %	0,100	874166405
QDS	green	48 V AC/DC	+/- 10 %	0,075	874166408
QDS	green	110-120 V AC	+/- 10 %	0,085	874166310
QDS	green	230-240 V AC	+/- 10 %	0,075	874166313
QDS	red	24 V AC/DC	+/- 10 %	0,100	874162405
QDS	red	48 V AC/DC	+/- 10 %	0,075	874162408
QDS	red	110-120 V AC	+/- 10 %	0,085	874162310
QDS	red	230-240 V AC	+/- 10 %	0,075	874162313
QDS	yellow	24 V AC/DC	+/- 10 %	0,100	874167405
QDS	yellow	48 V AC/DC	+/- 10 %	0,075	874167408
QDS	yellow	110-120 V AC	+/- 10 %	0,085	874167310
QDS	yellow	230-240 V AC	+/- 10 %	0,075	874167313

Type	Nominal voltage	Voltage range (V)	Nominal current (A)	Mains frequency	Part no.
ASS-T	24-48 V AC/DC	21-53 V AC 21-60 V DC	0,230	50-60 Hz	874170408
ASS-T	110-240 V AC	95-265	0,070	50-60 Hz	874170313

Type	Type of accessory	Weight	Part no.
ASK	Screw set for use with A/Q series size 1 and 2	2 g	874045900
PIN	Adjustment pin for built-in buzzer	1 g	813909405
AMK	Mounting set for combining several pieces of signalling equipment of the same size	10 g	874010900
AW1	Bracket for size 1 multitone sirens “A” and/or beacons “Q”	152 g	874041900
AG1	Flat seal for correct IP66 installation on smooth surfaces	19 g	874021900
AKV	Cable gland M20x1,5	14 g	698800026
