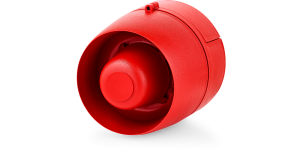

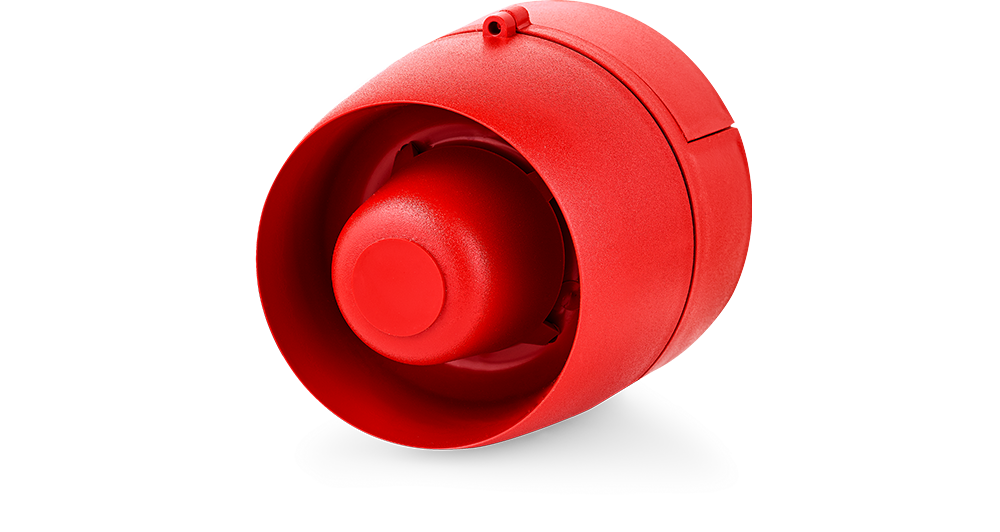

ES1 Multi-tone alarm sounder
Request product
Download 3D model

ES1 Multi-tone alarm sounder

  • Cost-effective multi-tone alarm sounder
  • 32 tones can be selected via DIP switch
  • Sound pressure can be preselected in 3 steps via DIP switch
  • For universal applications at 24 V DC
  • Second tone can be switched externally
  • Degree of protection IP 65 can be achieved if installed correctly

Especially suitable for

Technical data

HousingABS red (RAL 3000) or white (RAL 9003)
Type of mountinghorizontal, vertical or any, Sound outlet opening at bottom or horizontal
Cable entryBack or side
Tone32 Tones, 2 Tones can be switched externally, see tone table
Volume86-106 dB (can be adjusted with DIP switch)
Tone frequency440-2.900 Hz
Duty cycle100 %
Operating temperature-20 °C / +70 °C
Degree of protectionIP65
Weight250 g
