ESP Panel mount buzzer M28

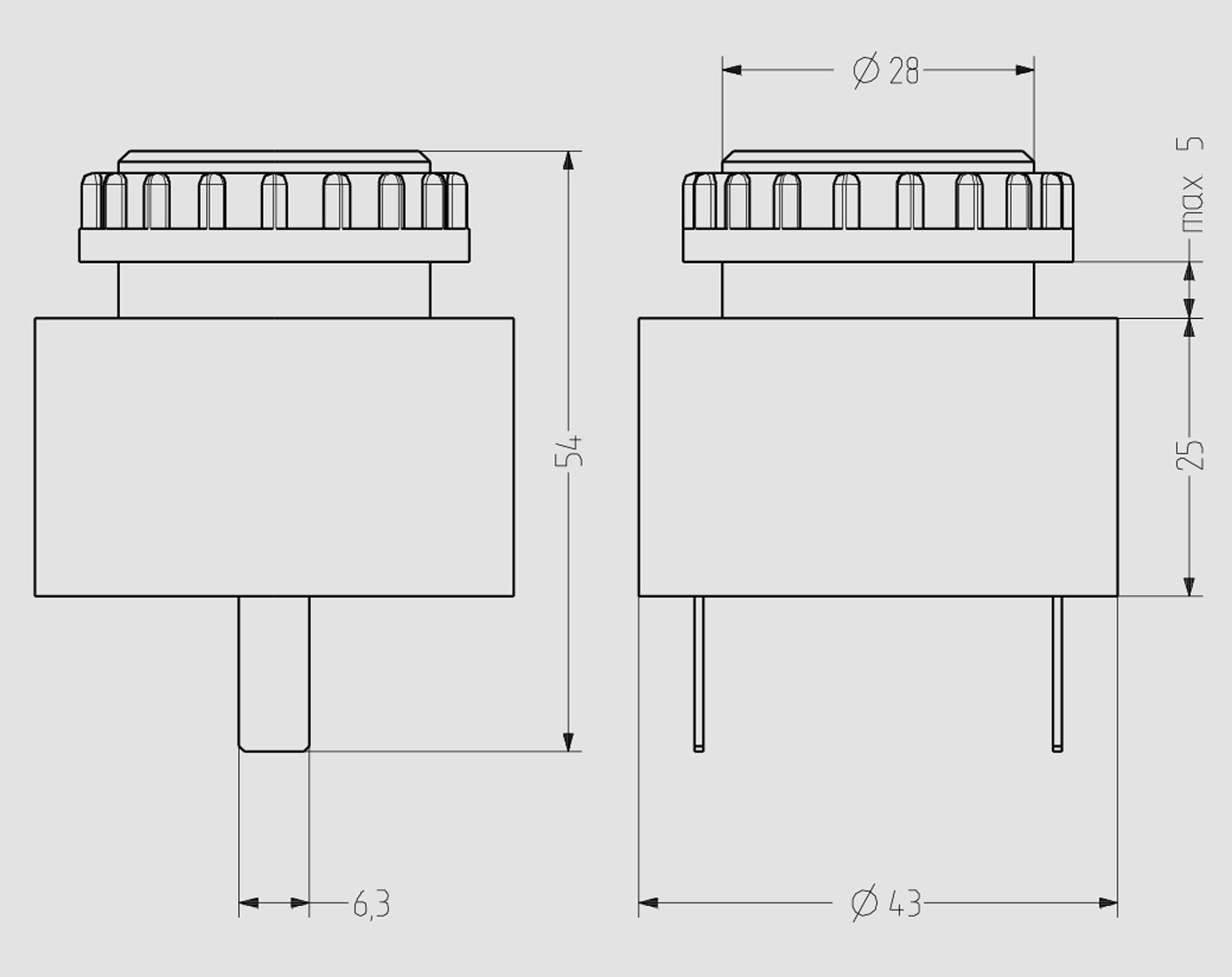

Ø 35 mm (mounting nut) panel-mount buzzer
Max. 90 dB (A) sound pressure
Wide voltage range
Panel size Ø 28 mm/M28

Pulsing tone
Connection via tabs
For industrial and general applications
Sealed electronics, low current consumption

Especially suitable for

Technical data

Housing	ABS grey or black
Type of mounting	any
Panel size	28 mm (M28)
Connection technology	Flat connector
Tone	Pulsing tone
Volume	90 dB
Tone frequency	2.400 Hz
Duty cycle	100 %
Operating temperature	-20 °C / +60 °C
Degree of protection	IP30
Weight	55 g
