CT5DF

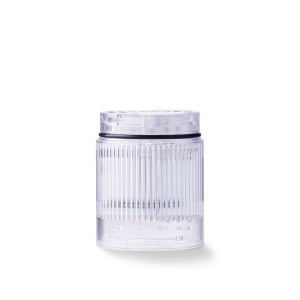

CT5DF LED multifunctional module

Part no.

915024005
Request product
Download 3D model

CT5DF LED multifunctional module

  • LED multi function module with 4 light functions: LED steady/flashing/strobe/double strobe beacons
  • Function can be changed at any time via DIP switch
  • Available in 6 colours
  • High degree of protection IP65, UL type 4/4X
  • IO-Link compatible

Technical data

Leakage current0,003 A
Beacon typeLED steady light, flashing light, strobe light and double strobe light
Duty cycle100 %
Operating temperature-30 °C / +60 °C
Degree of protectionIP65 & UL Type 4/4x
Impact resistanceIK07
Weight34 g
