CT5ZM

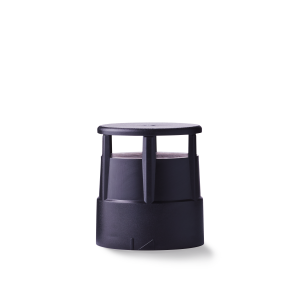

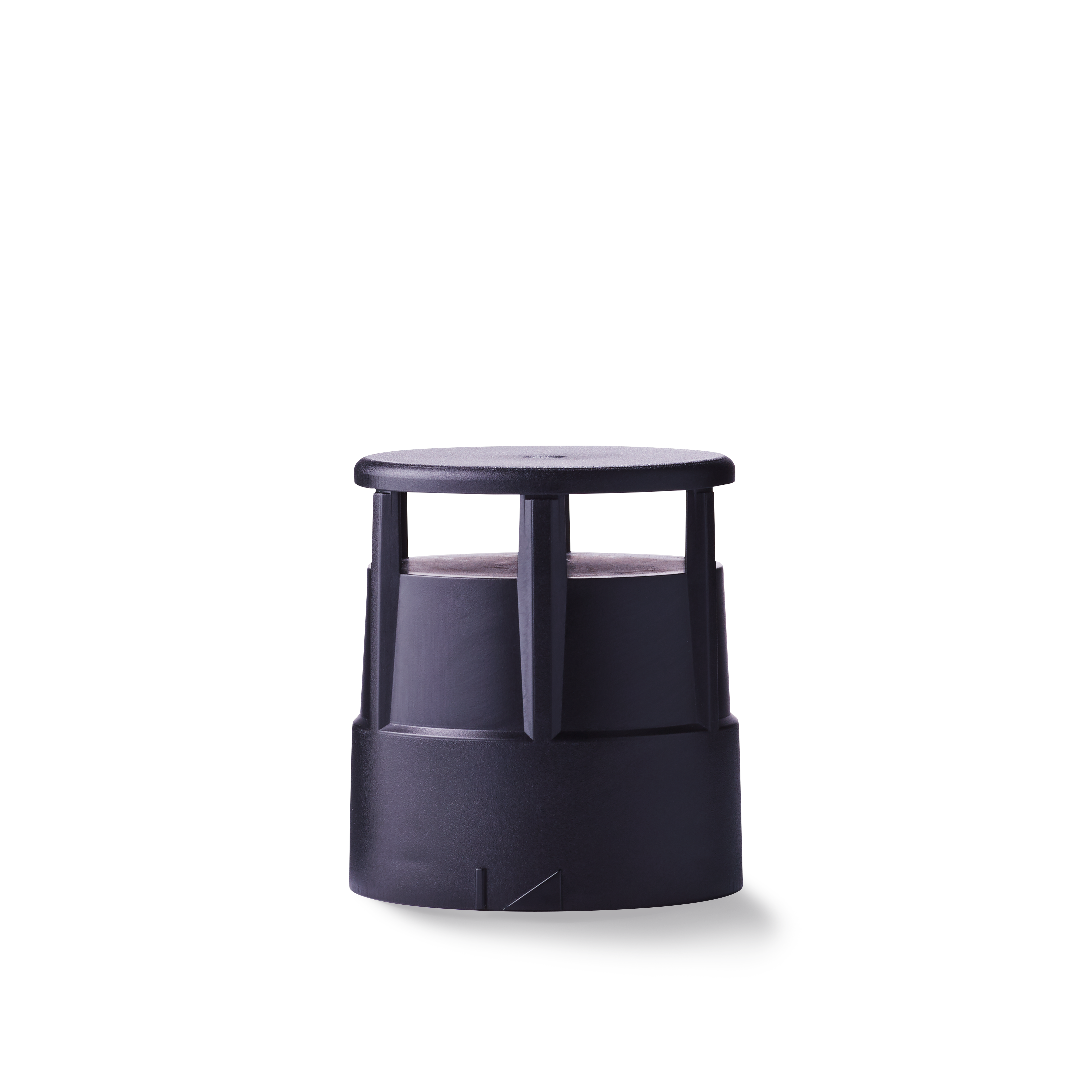

CT5ZM Piezo buzzer module
- Piezo buzzer module for CT5 modular signal tower
- For mounting at the top of a signal tower
- one of eight tones can be selected with a dip switch
- Max. 95 dB volume, can be controlled with potentiometer
- High degree of protection IP65, UL type 4/4X
- IO-Link compatible
Technical data
| Leakage current | 0,003 A |
| Volume | 95 dB |
| Duty cycle | 100 % |
| Operating temperature | -30 °C / +60 °C |
| Degree of protection | IP65 & UL Type 4/4x |
| Impact resistance | IK07 |
| Weight | 27 g |
Accessories
| Type | Type of accessory | Weight | Part no. | |
|---|---|---|---|---|

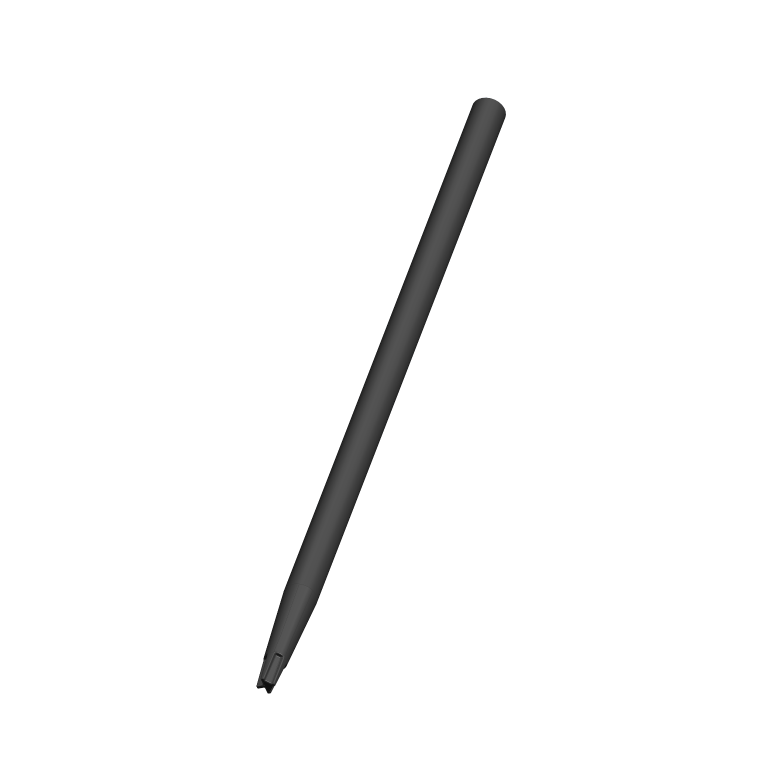

 | PIN | Adjustment pin for built-in buzzer | 1 g | 813909405 |
