PC7ASI30

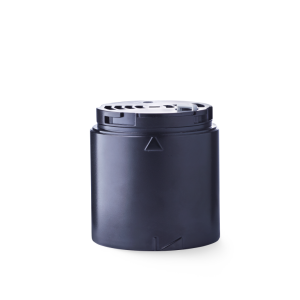

PC7ASI30 AS-Interface module

Part no.

910775300
Request product
3D-Modell herunterladen

PC7ASI30 AS-Interface module

  • AS-Interface slave for PC7, for controlling up to 4 modules
  • max. 62 slaves, max. 4 modules
  • Supply of the modules either from the AS-Interface system or via external supply (switchable via jumper)
  • Power requirement of the AS-Interface circuit: 20mA
  • Supply of the modules from the AS-Interface circuit: max. 280mA for all 4 modules
  • External supply: max. 280mA
  • Status display (red and green LED) visible from outside

Technical data

Operating temperature-30 °C / +70 °C
Degree of protectionIP66, IP67 & UL Type 4/4x/13
Impact resistanceIK08
