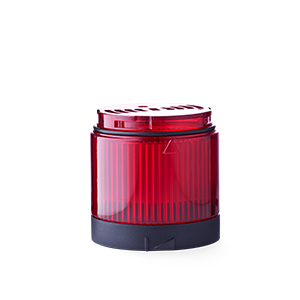

PC7DF LED multifunctional module
- LED multi function module with 4 light functions: LED steady/flashing/strobe/double strobe beacons
- Function can be changed at any time via DIP switch
- Very bright, maintenance-free LED multi function light with powerful signalling effect
- Available in 7 colours
- High degree of protection IP66/IP67, UL type 4/4X/13
- IO-Link compatible
Technical data
Leakage current | 0,003 A |
Beacon type | LED steady light, flashing light, strobe light and double strobe light |
Duty cycle | 100 % |
Operating temperature | -30 °C / +70 °C |
Degree of protection | IP66, IP67 & UL Type 4/4x/13 |
Impact resistance | IK08 |
Weight | 83 g |
