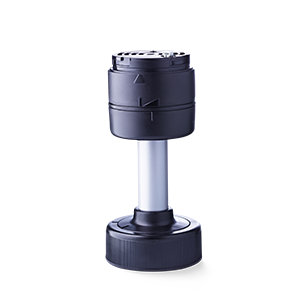

PC7FR “Foot adapter” quick mounting system on aluminium tube
- Quick mounting base complete with aluminium tube and mounting adapter
- For PC7 modular signal towers
- Easy to dismantle by opening the locking ring
- Signal tower is ready to use immediately at the mounting site without the need for tools or electrical installation
- High contact reliability and conductivity, even when exposed to vibrations
- Suitable for up to 5 signal tower modules
- Tube lengths of 100 – 250mm
- High degree of protection IP66/IP67, UL type 4/4X/13
Technical data
Operating temperature | -30 °C / +70 °C |
Degree of protection | IP66, IP67 & UL Type 4/4x/13 |
Impact resistance | IK08 |
![](/site/assets/img/6331a18d107cde0dbd8e948cf95edb52.png)
![](/site/assets/img/ef0dd291dad28638611d4795330cd650.png)
![](/site/assets/img/c4155bc8ba39d565b531b4e37df94e93.png)
![](/site/assets/img/0709a342da498906862301c2ab656776.png)
![](/site/assets/img/a9e7f39b3b42f571fb125ff04a202b82.png)
![](/site/assets/img/b97623746844ab9b1695b084ee7c788f.png)
![](/site/assets/img/84014c3523426d5300e506ff29a667a6.png)
Accessories
Type | Type of accessory | Weight | Part no. | |
---|---|---|---|---|
![]() | WZC | Bracket | 85 g | 200550900 |
![]() | WZCI | Bracket Indoor Metal bracket | 85 g | 200550910 |
