PC7MC8

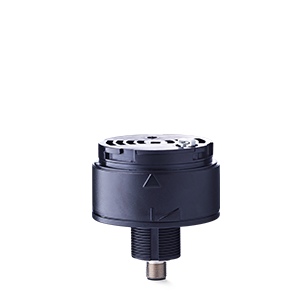

PC7MC8 Base with integrated 8-pin M12 plug

Discover product benefits

Downloads

Request product

3D-Modell herunterladen

PC7MC8 Base with integrated 8-pin M12 plug

Base with M30 mounting thread and integrated 8-pin M12 connector
For connecting PC7 modular signal towers to standardised M12 circular connectors with 8 pins
Suitable for up to 7 signal tower modules
High contact reliability and conductivity, even when exposed to vibrations

High degree of protection IP66/IP67, UL type 4/4X/13

Technical data

Duty cycle	100 %
Operating temperature	-30 °C / +70 °C
Degree of protection	IP66, IP67 & UL Type 4/4x/13
Impact resistance	IK08

Accessories

	Type	Type of accessory	Weight	Part no.
	WZC	Bracket	85 g	200550900
	WZCI	Metal bracket for vertical mounting, indoor	85 g	200550910
